BK4829 博通無線對講機射頻芯片
Features
? World wide band: 18 MHz ~ 660 MHz,
840 MHz ~1300 MHz
? 12.5/25/6.25/20 kHz channel spacing
? On chip 7 dBm RF PA
? 2.6 V to 3.6 V power supply
? CTCSS tone receiver with tail CTCSS
frequency detector
? 23/24 bit programmable DCS code
? Standard DTMF and programmable
in-band dual tone
? SELCALL and programmable in-band
single tone
? FSK data modem
? Frequency inversion scrambler
? Voice activated switch (VOX)
? RF Signal strength measurement
? TX Audio signal strength indication
and RX audio signal strength
indication
? 3-wires interface with MCU with
maximum 8 Mbps clock rate

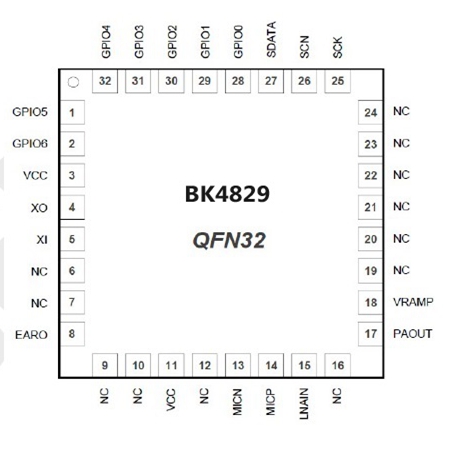

? QFN 4x4 32-Pin package
Applications
? Personal Radio Service
? Baby Monitor
? Toys
General Description
The BK4819 is a half duplex TDD FM
transceiver operating within 18 MHz ~ 660
MHz, 840 MHz ~1300 MHz band range for
worldwide personal radio. Besides speech
communication, the BK4819 on-chip FSK
data modem supports F2D and F1W
emission to be used in both FRS and
DPMR band for text message and GPS
information exchange.
The BK4829 is a complete, small form
factor solution optimized for low-power,
low-cost, and highly integrated mobile and
portable consumer electronic devices,
requiring only a few external decoupling
capacitors and an external inductor for
input matching.
