Product Name:

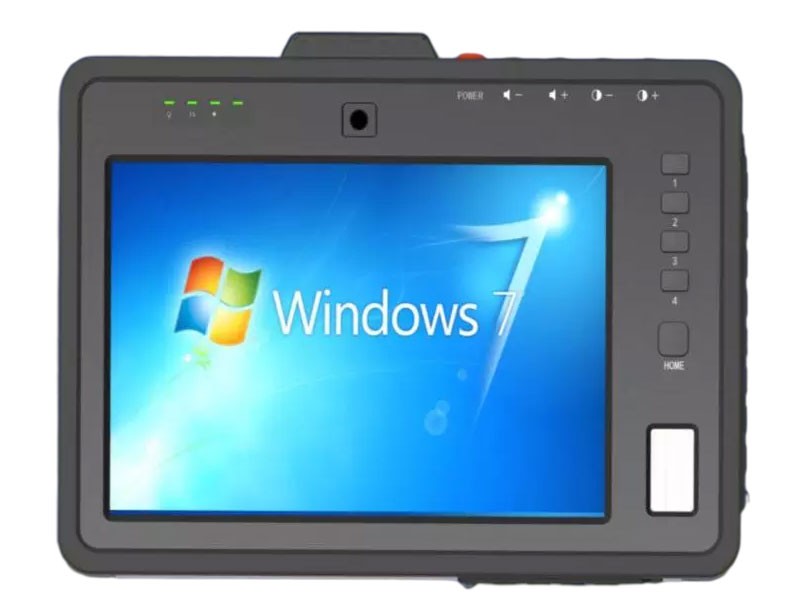

Admission display and control equipment based on Intel processor -- portable computer an1862

Product introduction:

Considering the functional requirements and portability of the admission display and control equipment during the whole exercise, the admission display and control equipment is designed as a portable tablet computer, which is composed of the input display and control equipment, supporting cables, antennas, etc. The computer board with strong computing power, BDS / GPS chip, camera, etc. are integrated in the input display and control equipment, and the lithium battery is self powered to complete the operations of display, data input, positioning, photographing, storage, data processing, etc. Specific functions: locate and mark the coordinate position of each combat equipment, and configure the initialization parameters required for exercise evaluation; Display the real-time ruling results to the combat personnel of ground air defense weapons; Real time monitoring and displaying the working status of data acquisition equipment and data processing equipment; It has the ability of data storage, analysis and decision processing with the same main functions of the data processing equipment. When the data processing equipment fails, the admission display and control equipment can spontaneously receive the data sent by the data acquisition equipment and complete the processing task.

Product features:

? compatible with cometype6 module

? 1GB DDR on-board table memory, which can be expanded to 2G at most

? onboard msata electronic disk interface

? non standard VGA display interface

? 3-way 100M Ethernet interface is led out by HARTING connector, 100m adaptive

? one 3-wire RS232 serial port is led out by M12, and the maximum baud rate is 115200 B / s

? one USB2.0 interface is led out by M12

? three isolated can ports are led out by HARTING connector, with a maximum speed of 1m

? 24V power input, voltage fluctuation range 18 ~ 32V; At the same time, it can output 12V voltage 100W

? the maximum power consumption of the whole board is less than 10W (excluding the power output part)

? support the operating system windows and Linux, and provide can driver under Linux and XP

? the shell is used for cooling and heat dissipation, and the working temperature is: - 40 ° C - 85 ° C

? non standard 4U board, overall dimension: 135x 222mm
