Product Name:

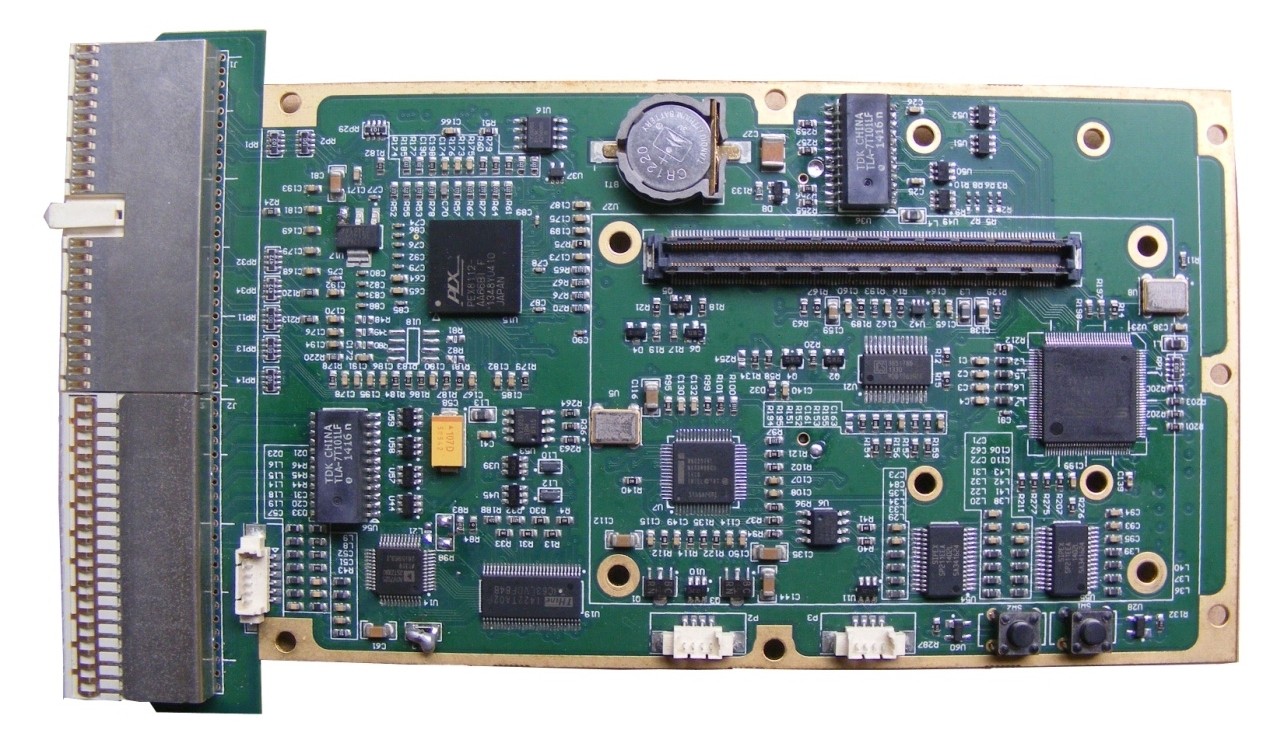

3U single board computer card an3n61 based on Intel processor
Product introduction:
An3n61 is a 3U single board computer card following PICMG 2.11 specification. The computer is designed based on cometype10 module, and is extended with common interfaces such as network, serial port, electronic disk, USB and CPCI bus. It is universal and easy to upgrade. It supports reinforced cooling and heat dissipation to adapt to more severe working environment.
Product features:
? standard 33MHz 32bits CPCI bus, supporting 5 peripherals
? compatible with come-m CT10 n2600 / d2550 module
? 1GB DDR onboard memory, which can be expanded to 2G at most
? support 4 GB SSD onboard electronic disk, which can be expanded to 16g at most
? VGA display interface, display resolution 1024 × 768、800 × 600、640 × 480、640 × six hundred and forty
? one on-board SATA electronic disk interface and one post transmission SATA interface
? 2-way Gigabit Ethernet post interface, 10m / 100M / 1000m adaptive
? two RS232 standard rear serial ports, with a maximum baud rate of 115200 B / s
? standard PS / 2 keyboard and mouse interface
? 2-way USB2.0 rear outlet interface
? maximum power consumption of the whole board: < 5W, the board has its own cooling radiator
? support operating systems Windows, Linux 2.6, VX works 5.5 / 6.8 and provide corresponding drivers
? according to the heat dissipation design, the widest working temperature: - 40 ° C - 85 ° C
? comply with the national military standards gjb150-86 and GJB 151a-1997, and meet the requirements of military equipment use environment and electromagnetic compatibility
? standard 3U CPCI board, overall dimension 160mm x 100mm, standard 4HP height (including radiator)
