Product Name:

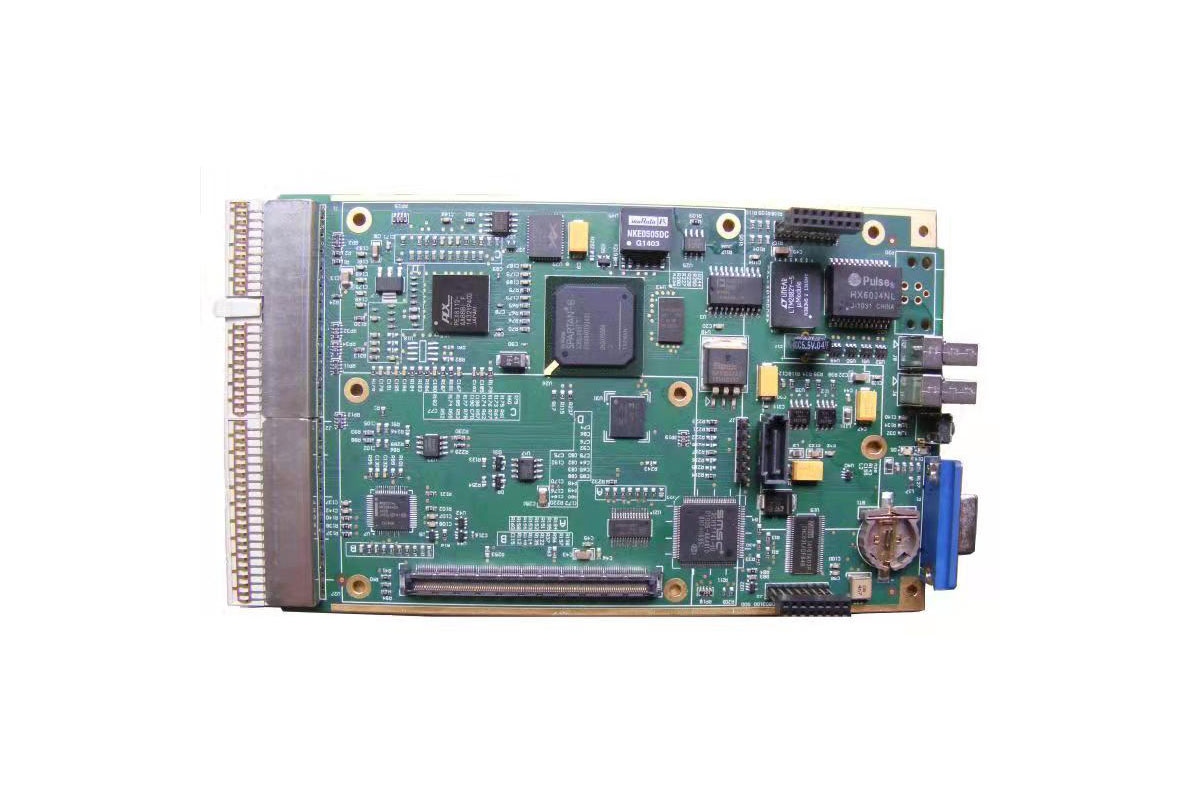

3U single board computer card an3n55 based on Intel processor
Product introduction:
An3n55 is a 3U 8HP embedded motherboard of CPCI standard, which is applied to railway locomotive traction control. The motherboard is designed based on cometype10 module and extends standard general interfaces such as network, serial port, electronic disk, FPGA, USB2.0 and CPCI bus. It is easy to upgrade and supports strengthening the cooling and heat transfer system to adapt to a more severe working environment.
Product features:
? standard 33MHz 32bits CPCI bus, supporting 6 peripherals
? compatible with come-m CT10 n2600 / d2550 module
? 1GB DDR on-board memory, maximum expansion to 2G and above
? standard VGA display front out interface, display resolution SVGA 1024 * 768, 800 * 600
? 1-way onboard SATA electronic disk interface
? one Gigabit Ethernet standard interface comes out front and one Gigabit Ethernet standard interface comes out rear
? 2-way serial port, RS232 / RS422 / RS485 mode is optional, and the maximum baud rate is 115200 B / s
? standard PS / 2 keyboard and mouse interface
? 2-way USB2.0 standard front out interface and 1-way rear out interface
? 2-way standard CAN2.0 bus
? one I2C bus
? 1 standard SD card interface, supporting hot plug
? FPGA is designed to manage can and I2C buses
? maximum power consumption of the whole board: < 25W
? working temperature: - 30 ° C - 70 ° C (natural cooling)
? meet the development of embedded operating system, including QNX, Linux, wince, RTEMS, VxWorks, etc.
? meet the standards GB / T 21413.1, GB / T 24338, GB / T 25119 and GB / T 21563, and meet the requirements of service environment and electromagnetic compatibility of locomotive and vehicle electrical equipment
? standard 3U CPCI board, overall dimension 160mm x 100mm, standard 8HP height (including radiator)
